Re: Single Channel Replica Transmitters

Post by tiptipflyer » 17 Nov 2019, 09:25

Thanks Wayne, you are spot on.
Every evening, when I go to bed, I think about which models and which transmitters I will take the next day to the airfield.
I did not count my models or transmitters yet, but I have more than necessary (as my wife says).
Everytime I see an interesting old Tx, I simply have to build it.

Frank

ChrisBe
Posts: 9
Joined: 16 Feb 2019, 06:49

Re: Single Channel Replica Transmitters

Post by ChrisBe » 05 Apr 2020, 20:44

Hey all. After finding copies of the November and December issues of RCM&E I caught the bug for converting there old "button babies" to 2.4GHz , with using modern encoder boards and using servos instead of escapements. These were alot of fun to convert and very satifyed with the results. Thanks for taking a look!
Attachments

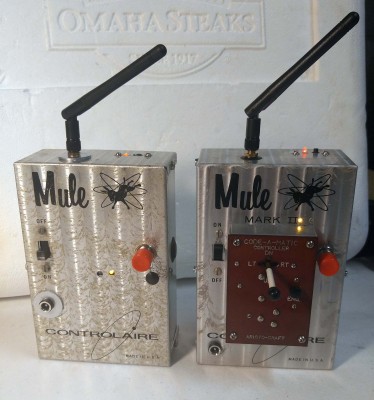

A Controlaire MK I Mule and a MK II Mule with CODE-A-MATIC controler. It's different!

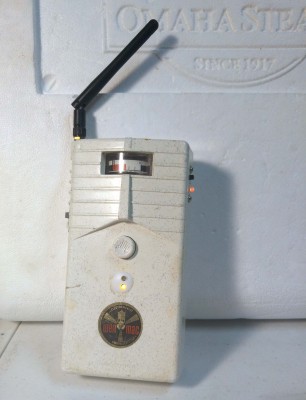

Wen Mac. One of my favorite conversions.

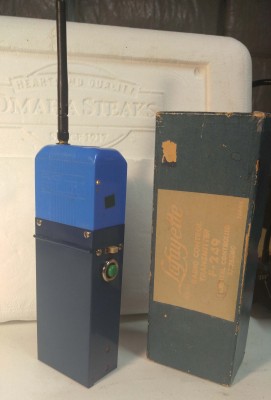

Lafayette F-249

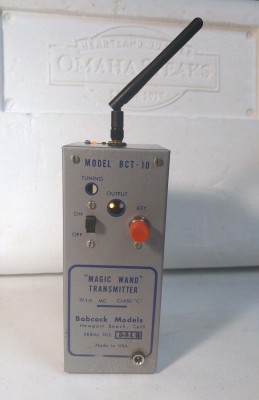

Babcock BCT-10. My first conversion.
Last edited by Phil_G on 05 Apr 2020, 21:15, edited 2 times in total.

ChrisBe
Posts: 9
Joined: 16 Feb 2019, 06:49

Re: Single Channel Replica Transmitters

Post by ChrisBe » 05 Apr 2020, 22:42

Hey Phil. These were taken by my old but reliable LG V10 Android phone. I'm better at building boxes then photo documenting them. Guess this means that I need to convert more transmitters so that I can improve my photo documenting Skills! 😉

User avatar
tiptipflyer
Posts: 243
Joined: 16 Feb 2018, 22:49
Location: Germany

Re: Single Channel Replica Transmitters

Post by tiptipflyer » 20 Apr 2020, 14:34

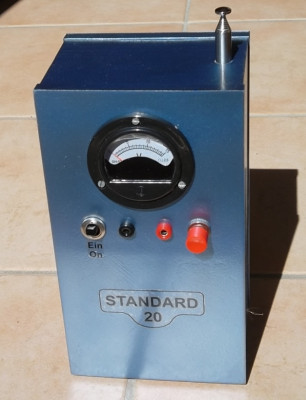

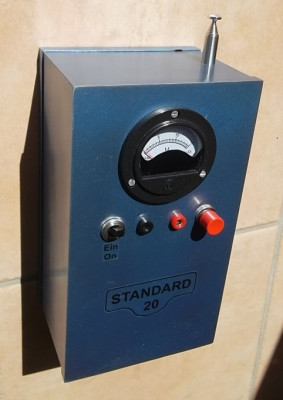

My next S/C replica transmitter is ready.
It´s a Graupner Standard 20 in blue color. They were avalable in black and blue as far as I know.
The meter is an expanded scale voltage meter. It features full S/C emulation with inactivity buzzer and low voltage alert.
The motor led will be fitted later.
The case is 3D-printed in the size of the actual transmitter.
Cheers
Frank

User avatar
Wayne_H
Posts: 389
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: Single Channel Replica Transmitters

Post by Wayne_H » 21 Apr 2020, 04:10

Another great job Frank!
Cheers,

Wayne
Once a Retrobate, always a Retrobate............ ;)

User avatar
RON
Site Admin
Posts: 579
Joined: 12 Jun 2017, 15:09
Location: Guisborough North Yorkshire

Re: Single Channel Replica Transmitters

Post by RON » 21 Apr 2020, 07:09

Very nice frank

Where did the meter come from, that’s a great vintage looking meter.

Ron.
If you would like to contribute a small amount toward the upkeep of this valuable forum then please click the Donations link at the top of the page, just below the mode zero logo. All donations are kept anonymous. Thankyou

User avatar
tiptipflyer
Posts: 243
Joined: 16 Feb 2018, 22:49
Location: Germany

Re: Single Channel Replica Transmitters

Post by tiptipflyer » 21 Apr 2020, 16:05

Thanks Wayne and Ron,

the meter is not vintage at all, it just looks like.

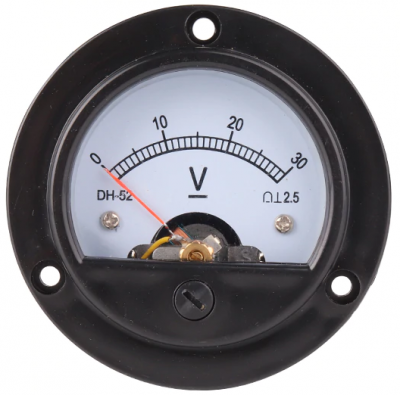

Vintage meters cost a million, so I used this one:
It is available in various voltage ratings
https://de.aliexpress.com/item/40003693 ... hweb201603_
and I used a carefully cut piece of black self adhesive vinyl to cover part of the glas.
The meter is modified to an expanded scale voltmeter using a 6.1V zener diode and a 20k variable resistor.
That makes a very vintage looking meter fo little money.

Frank
