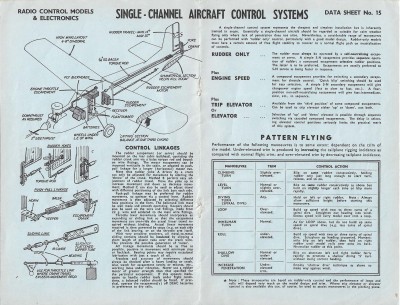

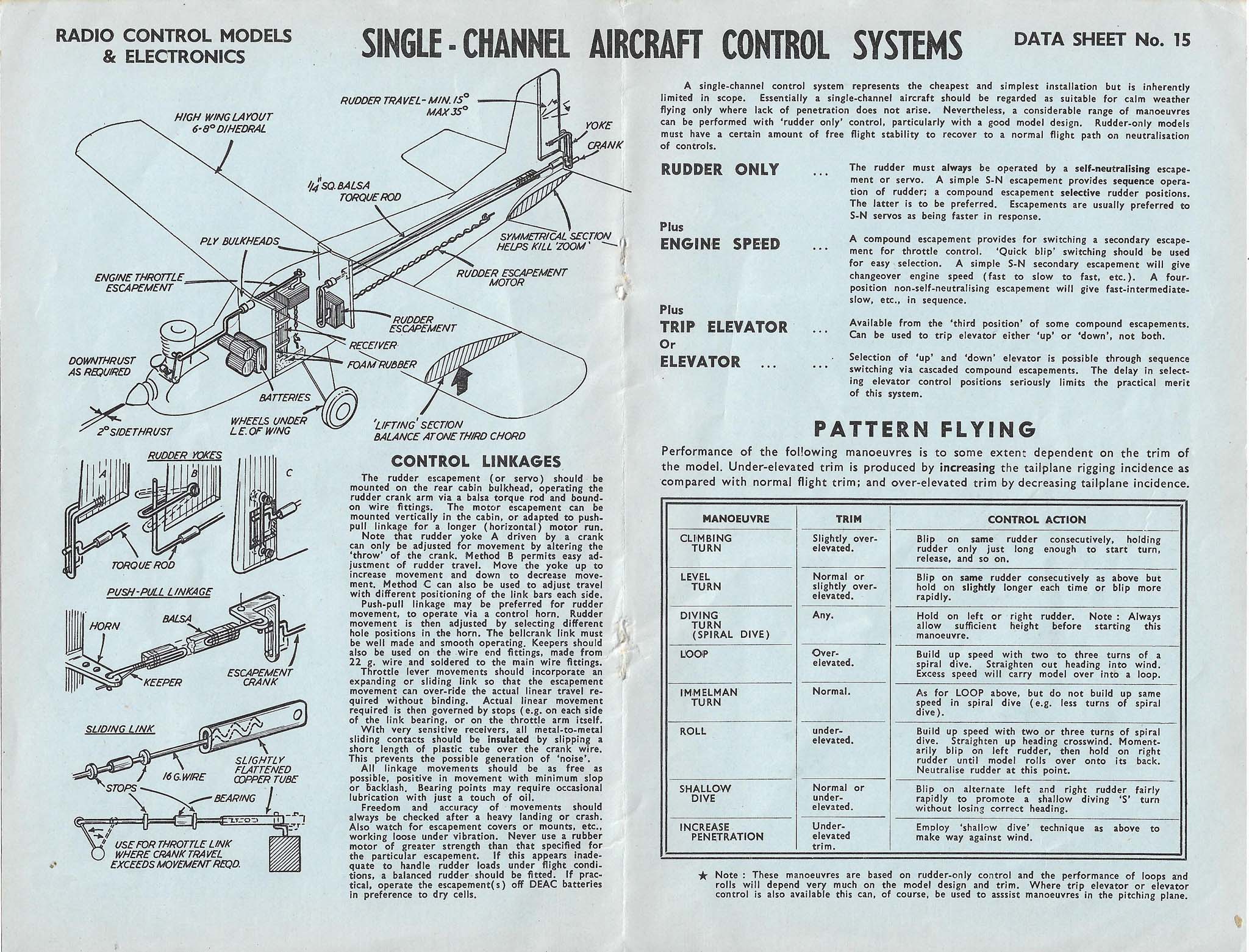

RCM&E Data Sheet No 15 - S/C Aircraft Control Systems

Post by Phil_G » 22 Dec 2019, 15:28

Click & click again to enlarge


Mike_K
Posts: 390
Joined: 16 Feb 2018, 06:35

Re: RCM&E Data Sheet No 15 - S/C Aircraft Control Systems

Post by Mike_K » 23 Dec 2019, 09:46

Hi Phil

I don't think I've seen these data sheets before, they're quite informative. I assume they were free pull-outs in RCM&E in the early days?

Do you know what datasheets 1 to 14 were? And was there a datasheet 16 and higher?

Cheers

Mike

User avatar
Shaun
Posts: 588
Joined: 15 Feb 2018, 21:49
Location: West Yorkshire

Re: RCM&E Data Sheet No 15 - S/C Aircraft Control Systems

Post by Shaun » 23 Dec 2019, 11:35

Hi Mike,
Yes they were pull out sheets from the early A5 sized mags in the 1960's. Can't remember how many in total.

Shaun
