RCS Guidance System - Antenna base removal

Post by RichardT » 30 Jun 2020, 16:40

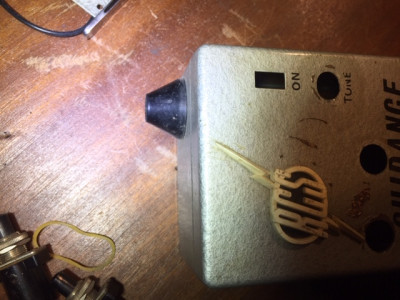

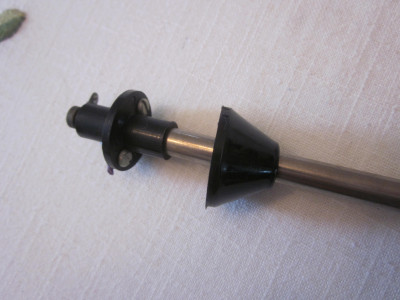

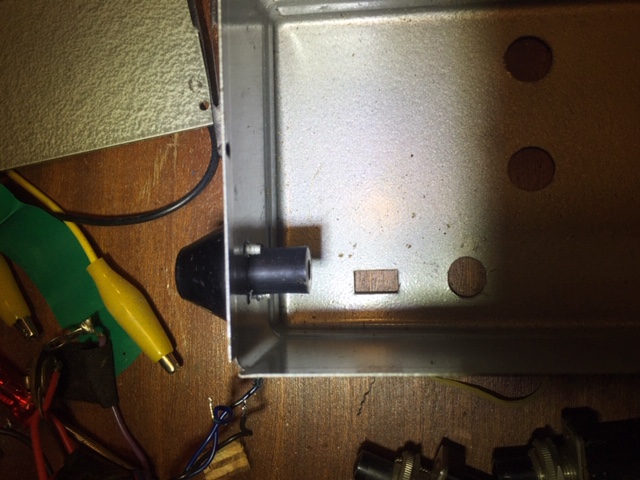

I have a venerable RCS Guidance System from the '60s which I want to convert to 2.4Ghz, but I can't work out how to remove the antenna base. There are two self tapping screws that look as though they've been installed from the top i.e. from inside the conical outer part. I'm guessing someone has done this before and can maybe help. Thanks in advance. Some photos attached.
Attachments

Barry
Posts: 5
Joined: 21 May 2018, 22:11

Re: RCS Guidance System - Antenna base removal

Post by Barry » 30 Jun 2020, 18:19

The cone should pop off to reveal the two screws

User avatar
Phil_G
Posts: 422
Joined: 15 Feb 2018, 23:32
Contact:

Re: RCS Guidance System - Antenna base removal

Post by Phil_G » 30 Jun 2020, 18:33

Yep its just a friction fit. Unfortunately on my RCS Digithree there wasnt enough friction, and I lost the cone at Ivinghoe Beacon!

User avatar
PaulJ
Posts: 387
Joined: 16 Feb 2018, 19:01
Location: Ipswich, UK

Re: RCS Guidance System - Antenna base removal

Post by PaulJ » 30 Jun 2020, 19:34

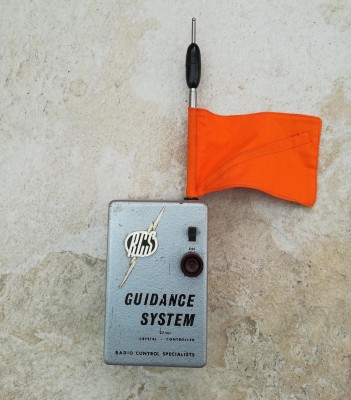

Hmm...... I'm not sure about the sequence of development of the Guidance system....... Mine only has a rubber grommet where the antenna goes through and the antenna has a centre loading.
Can anyone enlighten me as to the sequence if "improvements"?

Paul

RichardT
Posts: 4
Joined: 03 Mar 2019, 17:15

Re: RCS Guidance System - Antenna base removal

Post by RichardT » 01 Jul 2020, 22:40

Thanks everyone, didn't want to damage anything any more than necessary

Mike_K
Posts: 373
Joined: 16 Feb 2018, 06:35

Re: RCS Guidance System - Antenna base removal

Post by Mike_K » 02 Jul 2020, 13:16

PaulJ wrote:
30 Jun 2020, 19:34
Hmm...... I'm not sure about the sequence of development of the Guidance system....... Mine only has a rubber grommet where the antenna goes through and the antenna has a centre loading. IMG_20190427_114420.jpgCan anyone enlighten me as to the sequence if "improvements"?

Paul
Hi Paul

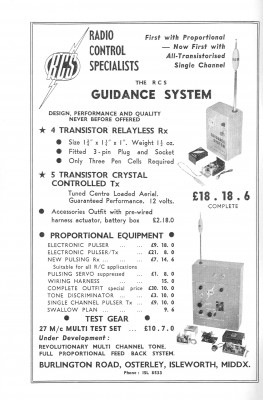

Yours is one of the earlier ones. The first advert I could find for the RCS Guidance System was RCM&E Dec 1962. It had an aerial just like yours.
By Feb 1964, some sets were getting the newer screwed aerial base with a shroud, but the Guidance System still had the grommet.
But by 1967 the Guidance had the screwed aerial base and shroud.
I know there were at least 5 versions of the Guidance System, though some were alterations to the receiver. As yours is converted to 2.4 I can't tell which exact version it is.

Cheers

MIke

User avatar
PaulJ
Posts: 387
Joined: 16 Feb 2018, 19:01
Location: Ipswich, UK

Re: RCS Guidance System - Antenna base removal

Post by PaulJ » 02 Jul 2020, 14:33

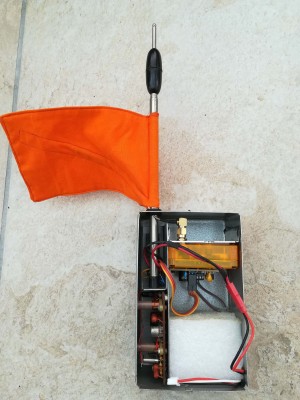

Thanks Mike, there was so much room in the case that I left all the original electronics in "for posterity". What should I look for?

Paul

Mike_K
Posts: 373
Joined: 16 Feb 2018, 06:35

Re: RCS Guidance System - Antenna base removal

Post by Mike_K » 03 Jul 2020, 09:40

Hi Paul

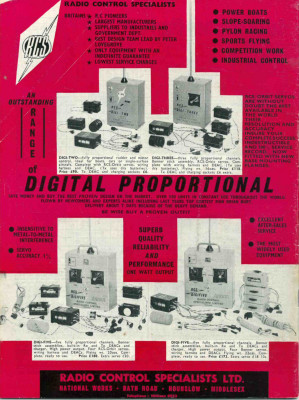

What little I know is based on RCM&E adverts, the "commercial developments" section and reviews. They used the "grommet" outlet with centre loaded aerial until 1966, then changed to base loaded aerial and the screw mound and conical shroud. I'm not certain if there were any developments between 62-66, maybe somebody who was flying in the early 60s could help us more! I've attached the first review from RCM&E Dec 62.

Cheers

Mike
Attachments
RCS_Guidance.pdf
(1.3 MiB) Downloaded 9 times

User avatar
PaulJ
Posts: 387
Joined: 16 Feb 2018, 19:01
Location: Ipswich, UK

Re: RCS Guidance System - Antenna base removal

Post by PaulJ » 03 Jul 2020, 10:36

Many thanks Mike. Mine has a different button to the one in the review, it is shrouded but not a microswitch so I suppose that dates it somewhere between '62 and '66........
Paul
