Single Channel Replica Transmitters

[tiptipflyer]

Hi guys
the next replica transmitter is finished.

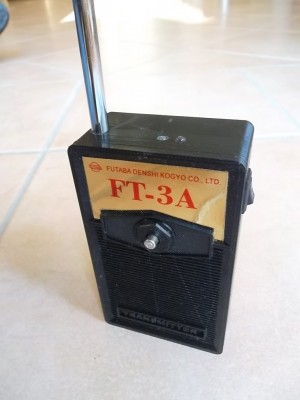

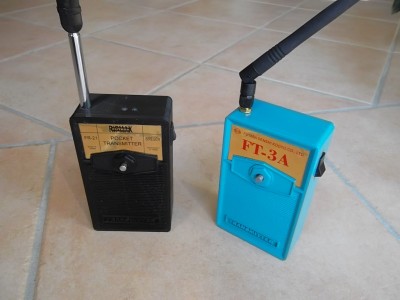

It is a Futaba FT-3A replica.
It features one of Phil´s S/C encoders with all the bells and whistles.
A rocker switch for power is located on the side.
HF is provided by a Futaba style Jamara 35MHz module. Power is from a PP3 style 2s lipo.
The enclosure is 3D-printed. Works great.

Cheers
Frank

[tiptipflyer]

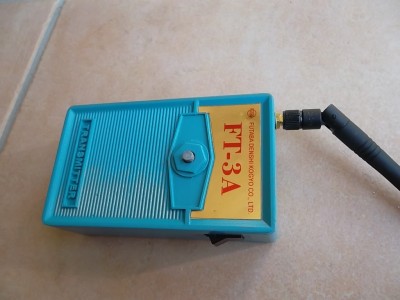

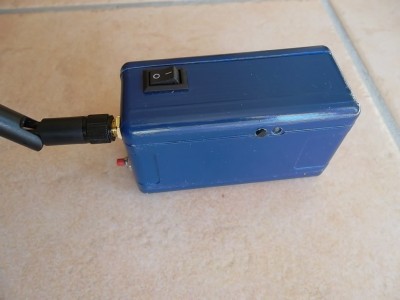

Just finished the 2.4G brother to the Futaba FT-3A transmitter.
This one uses Mike_K´s new S/C encoder. Works great.

Frank

[tiptipflyer]

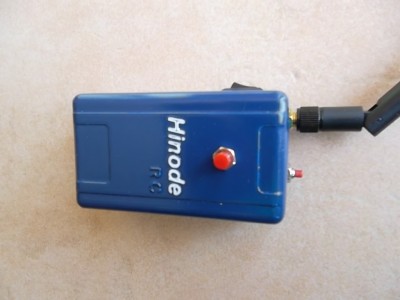

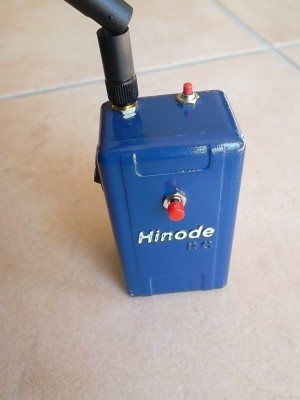

Some time ago, I saw a nice, tiny Hinode single channel transmitter in the internet. I like all tiny things, so a replica had to be build.
And here it is. The case is 3D-printed and measures 80x45x38mm, so it is tiny, just big enough for an Orange 2.4G module, an Attiny85 and a PP3 2cell lipo.
It uses the S/C sketch with additional throttle button I am using in several other projects.
It features compound and sequential mode, sequential 3position throttle, inactivity alert, low voltge alert etc.
Works very well and fits in a pocket, but nevertheless a full range transmitter.

Frank

[RON]

Superb Frank on the FT3-A
Frank, Just an idea

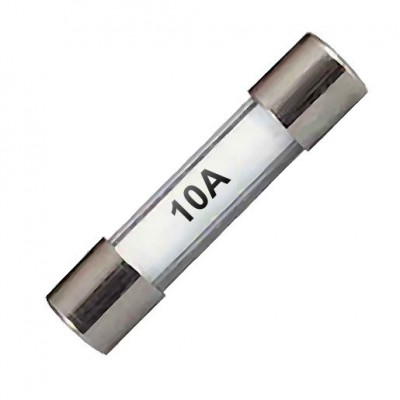

The button on yours looks like grey plastic, I was thinking the chrome end cap on a old fuse might just fit over the top, I'm presuming the original was chrome, it looks like chrome

[tiptipflyer]

Thanks guys.
Ron, you are right, the button on the black transmitter is indeed an endcab of a fuse, the button on the FT3A is 3D-printed Pla.

[tiptipflyer]

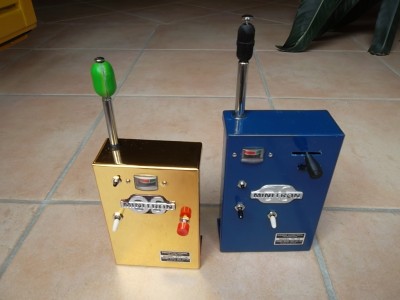

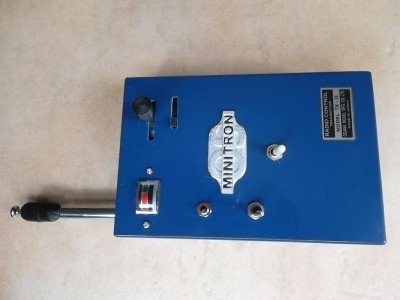

A pair of new transmitter replicas is ready to go. Both cases are 3D-printed incl. the Minitron logo on the front.

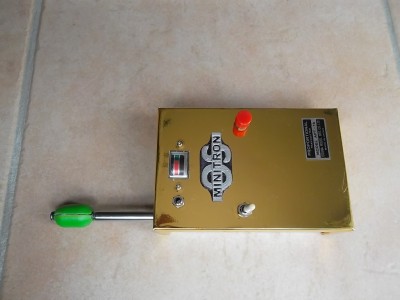

First is a S/C O.S. Minitron in gold. Digispark with S/C emulation and extra throttle button for sequential throttle. Inactivity buzzer, low votage alert. 35 MHz module.
Second is a blue S/C proportional O.S. Minitron. I added a button for S/C emulation incl. kick-up elevator plus progressive throttle like the GG trannies have. Inavtivity buzzer, 35MHz module. All on a Digispark extended to use P5 with Phil´s fuse programmer.
Both are working great, but not flown yet.

Cheers
Frank

[Wayne_H]

Very nice!!

Frank, where do you get your meters from as they are most realistic? Am I correct in assuming that the center loaded antenna coils are 3D printed "dummies"?

[tiptipflyer]

Yes Wayne,
the antenna coils are dummies, the meters are salvaged from old Futaba transmitters.

Frank

P.S. Flight-test done this morning, everything worked out perfectly as expected.

[tiptipflyer]

During bad weather, I drew some enclosures in OpenSCAD for new replica transmitters and get them printed.

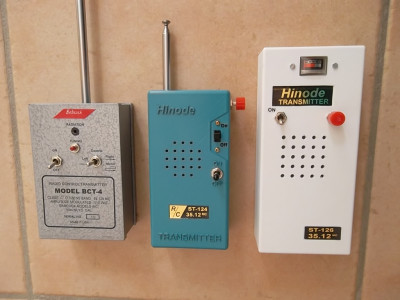

That´s what they look like. The cases are still empty, just the switches are installed and decals attached.

So stay tuned for further.
Frank

[Shaun]

Excellent job Frank.

Shaun.
