Ariel 6-Channel Reed Set

My favourite
User avatar
tiptipflyer
Posts: 323
Joined: 16 Feb 2018, 22:49
Location: Germany

Re: Ariel 6-Channel Reed Set

Post by tiptipflyer »

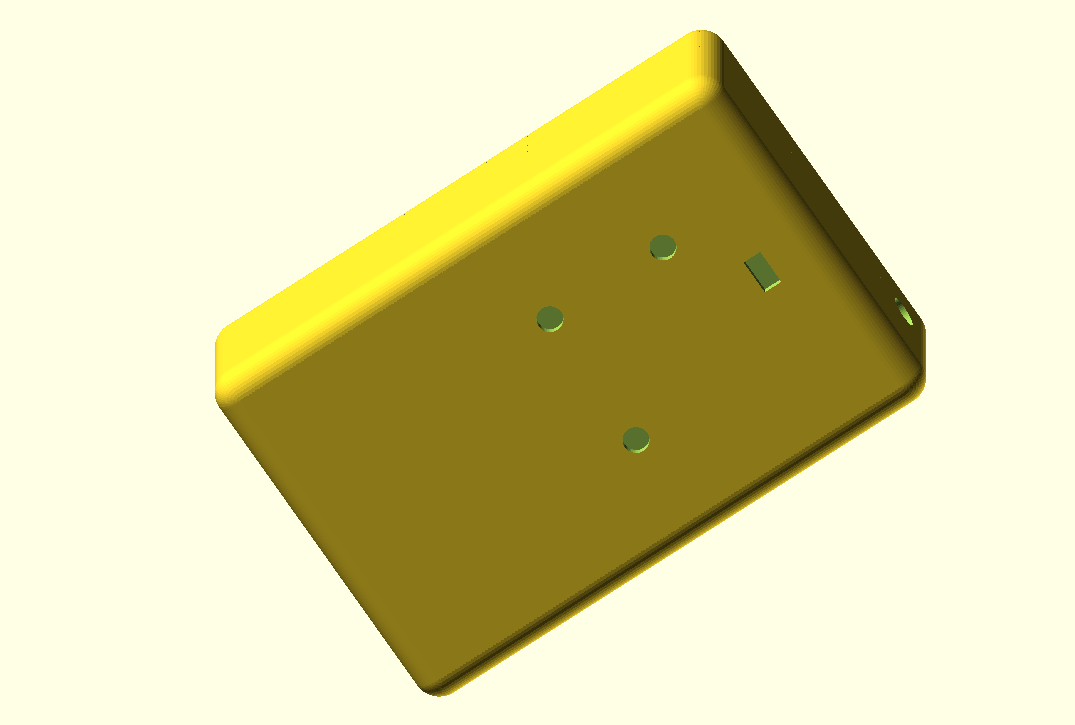

Without knowing the actual measurements I estimated the size of the case and made a drawing for 3-D print.
As soon as the actual size is known, I will revise the drawing.
Cheers
Frank
User avatar
Phil_G
Posts: 495
Joined: 15 Feb 2018, 23:32
Contact:

Re: Ariel 6-Channel Reed Set

Post by Phil_G »

Hermes brought the Ariel just a few minutes ago, thank you again Mike :D
I connected it up and 50 years on, it still works, not perfectly, but it works!
I learned something new too.
As an example, the RCS Inter-6 is not a bi-simul set, which means you couldn't operate rudder AND elevator at the same time - the toggles switch different tone-determining resistors into a common tone-generator. This was the norm for a sport radio, and obviously this means you cant do rudder/elevator spins, correct for skew halfway round a loop, or steer whilst inverted!
Only the posh Reed sets were bi-simultaneous with two tone generators, where any of the left-hand toggles could be operated at the same time as any on the right.

Well, as you can hear on the video, the Ariel is bi-simul. I never realised that at the time.
The unmodulated carrier is very noisy however, it wouldnt be flyable as it is.





For Frank, the dimensions are 180mm x118mm and 60mm deep.

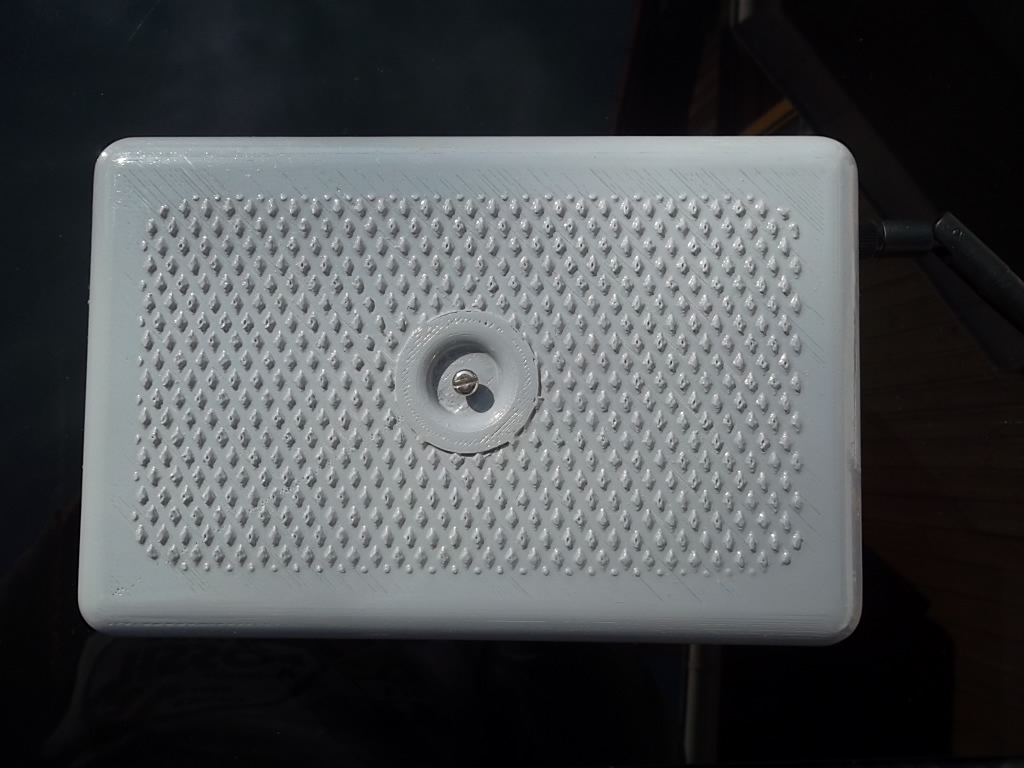

The rear has a pattern of raised things like dimples but outwards, that I dont know the word for - so I'm going to call then undimples :lol:
They project a couple of mm. The rounded corners are about 10mm radius.

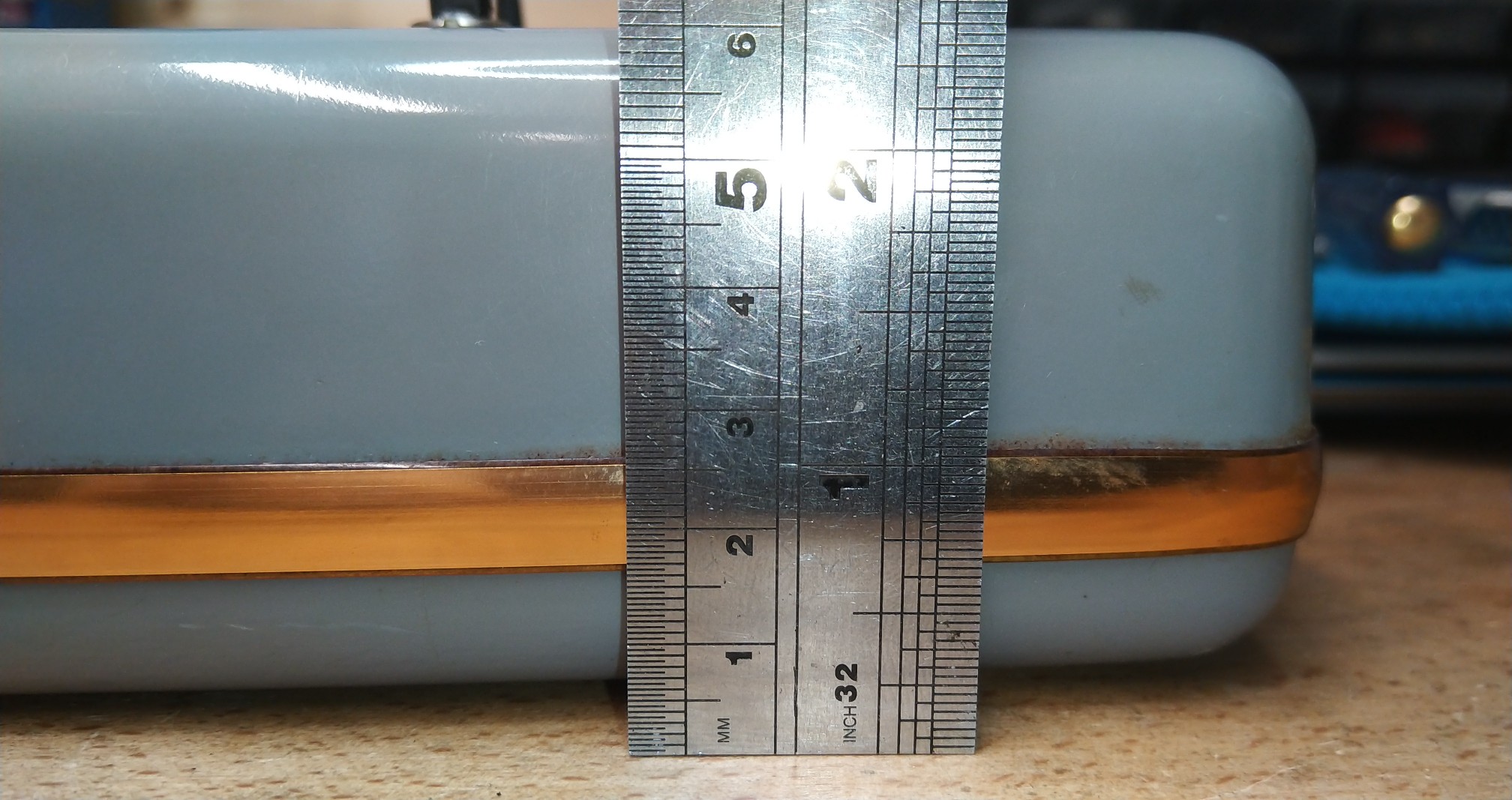

Here's the brass band joining the two halves, this is laid flat in the bench supported by the undimples :D




Cheers & thanks again Mike
Phil
User avatar
tiptipflyer
Posts: 323
Joined: 16 Feb 2018, 22:49
Location: Germany

Re: Ariel 6-Channel Reed Set

Post by tiptipflyer »

Congratulations for a great radio set Phil.
Looks good and sounds good.
Phil, when you have the time, could you please give me the size of the Ariel 6 transmitter that I can dimension my replica accordingly.
But no rush, I have plenty of projects underway.
Have fun with your new set and my deepest respect to Mike.

Cheers
Frank
User avatar
Mike_K
Posts: 448
Joined: 16 Feb 2018, 06:35
Location: Hertfordshire

Re: Ariel 6-Channel Reed Set

Post by Mike_K »

Hi Phil

I'm pleased it arrived safely and you're happy with it. When I tested it, I got nothing and I can't believe it got fixed by Hermes in the post, I wonder what I did wrong :?

Look forward to seeing you fly with it, hopefully later this year.

Cheers Mike
User avatar
Wayne_H
Posts: 542
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: Ariel 6-Channel Reed Set

Post by Wayne_H »

Phil_G wrote: 30 Jan 2021, 13:06 Hermes brought the Ariel just a few minutes ago, thank you again Mike :D
I connected it up and 50 years on, it still works, not perfectly, but it works!
..........
Cheers & thanks again Mike
Phil
As my youngest grand-daughter would say, "...you a lucky duck..." Mr G. :lol: We all know you'll put it to great use Phil, I look forward to seeing it in action on the slope, via tha tube. Me, I'm just :mrgreen: :mrgreen:
And well played Mr K, bravo sir!!
Cheers,

Wayne
Once a Retrobate, always a Retrobate............ ;)
User avatar
tiptipflyer
Posts: 323
Joined: 16 Feb 2018, 22:49
Location: Germany

Re: Ariel 6-Channel Reed Set

Post by tiptipflyer »

Thanks Phil, got it.

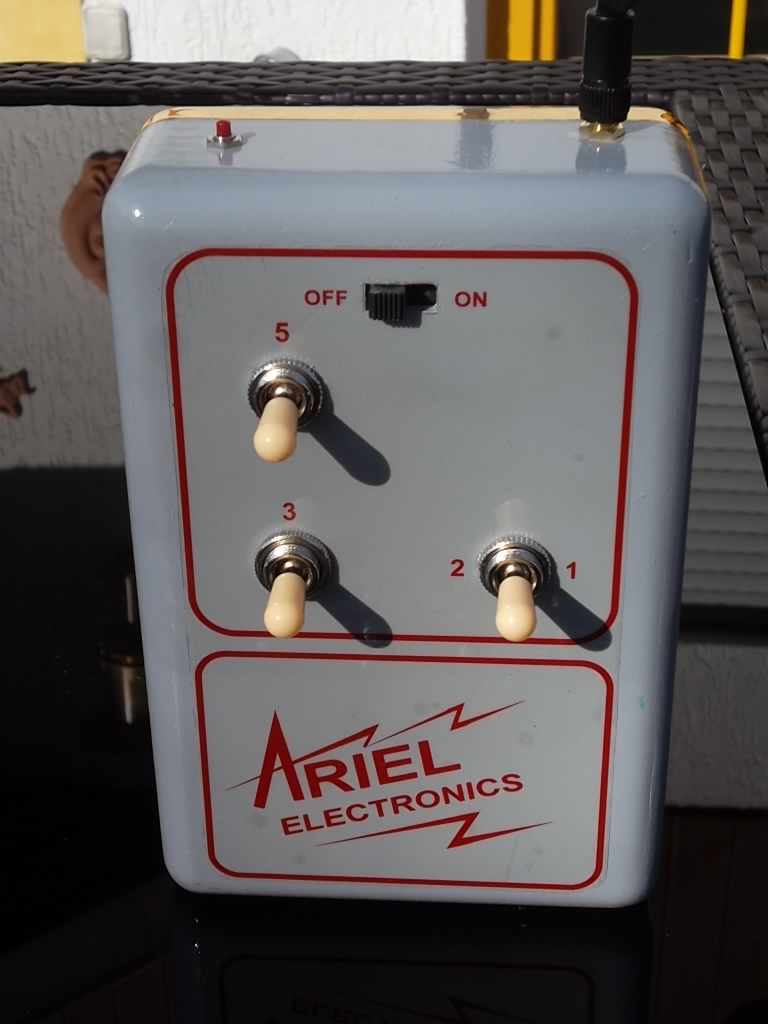

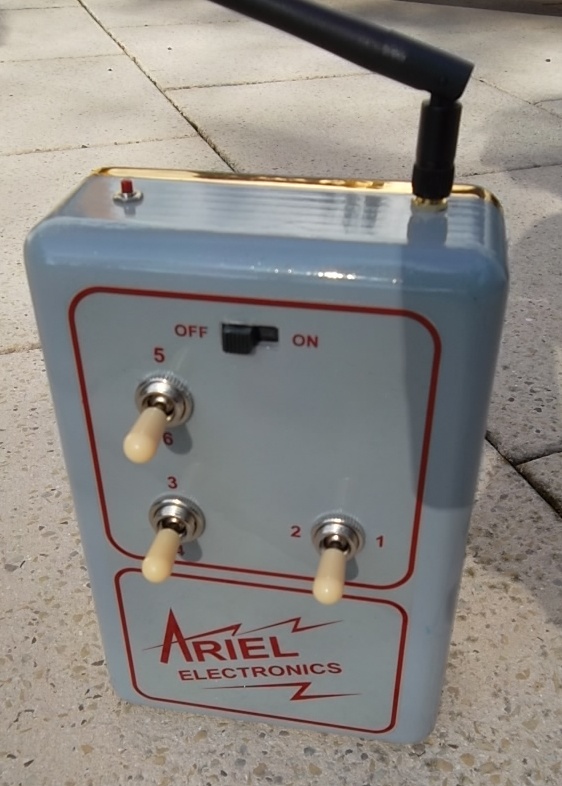

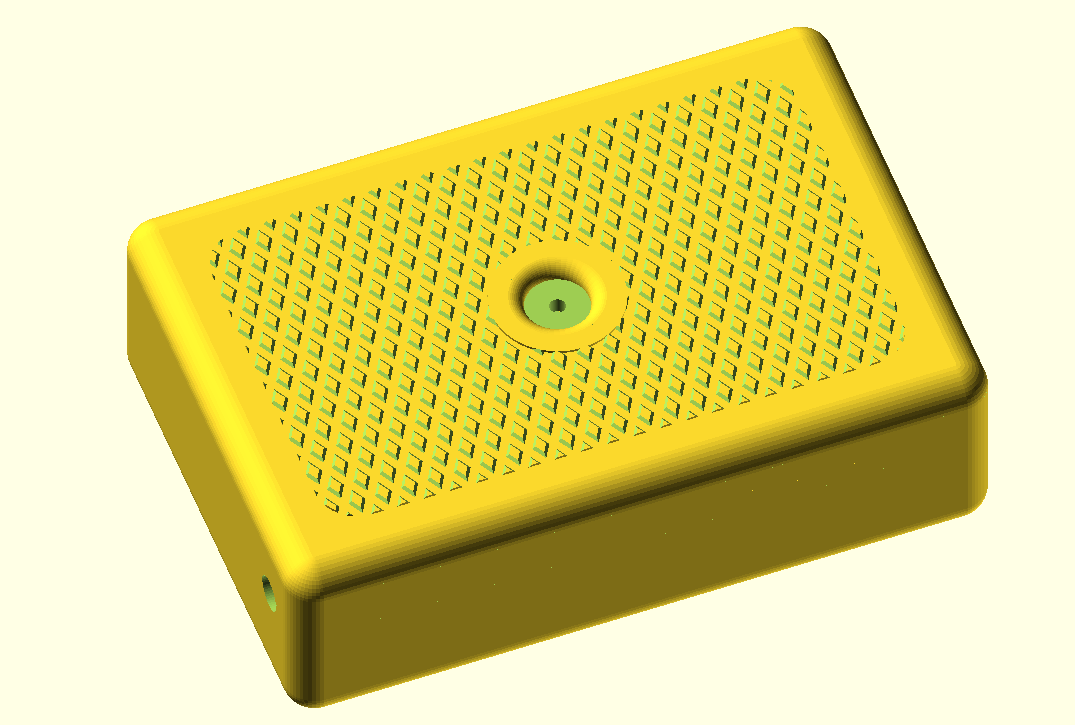

The drawing is resized and available in the 3-D print section.
However I do not have a printed example for the time.
viewtopic.php?f=72&t=1218
Frank
