MY 10 channel reeduino transmitter

Post by drigotti »

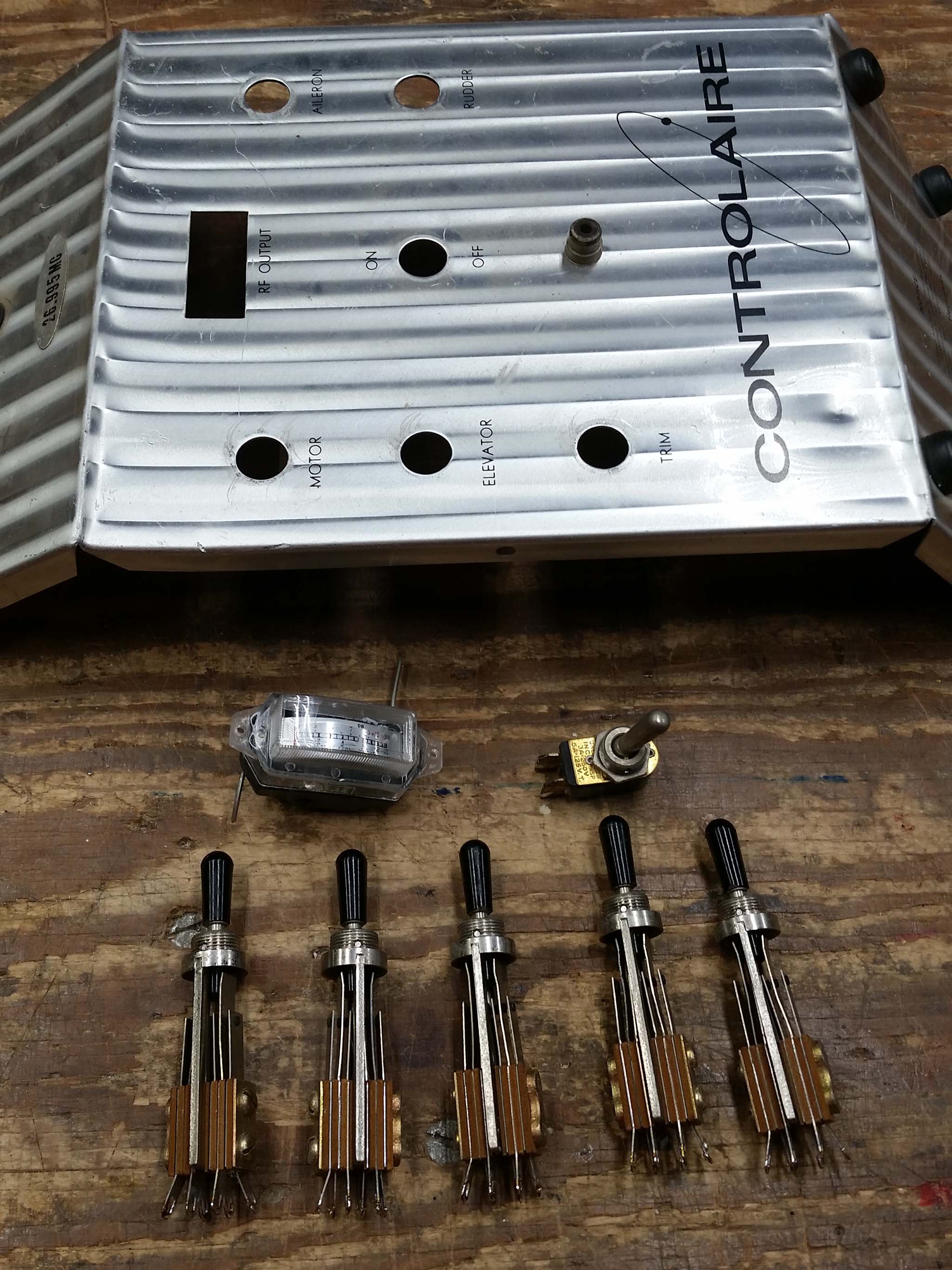

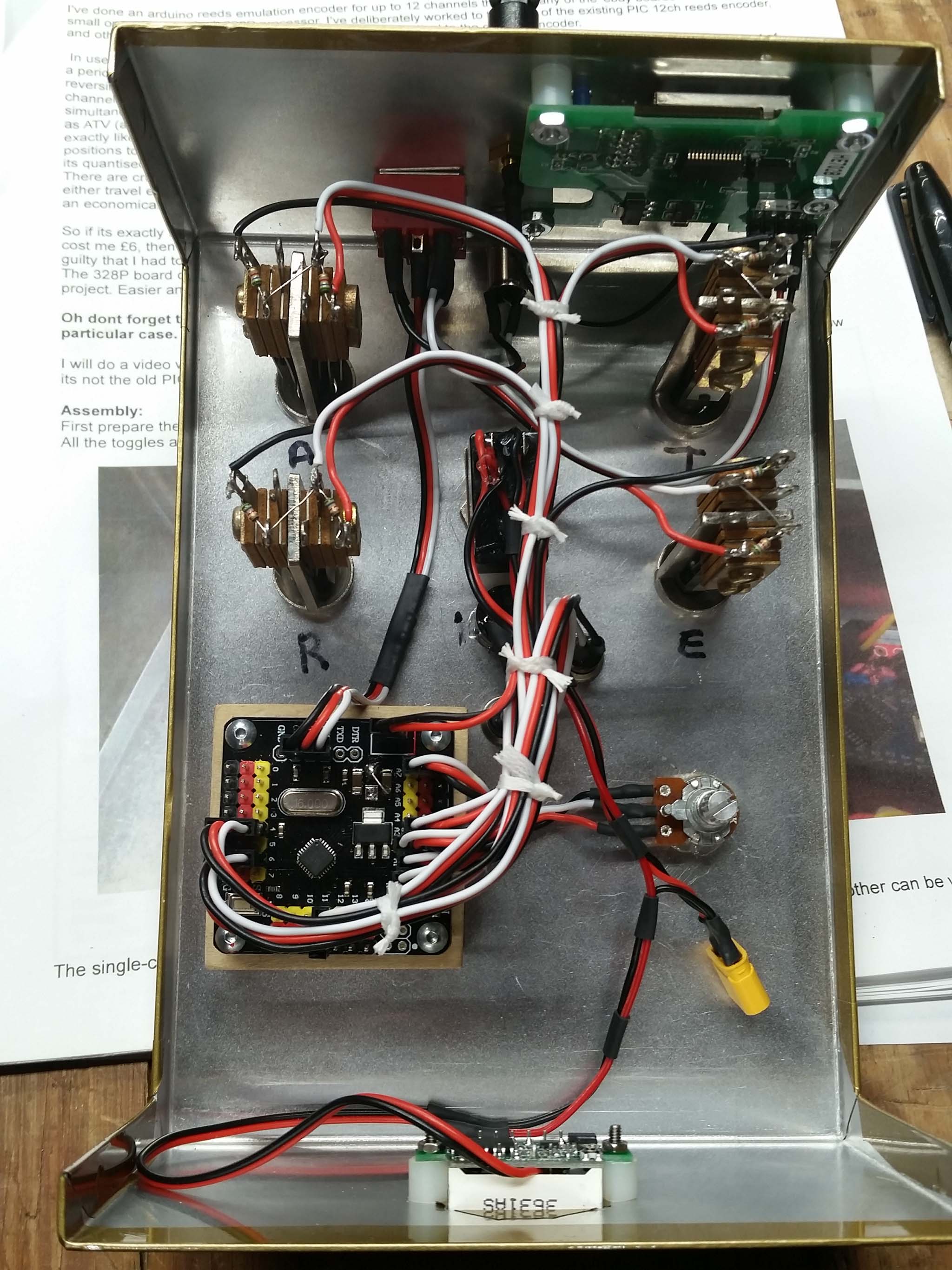

Just started putting together a homemade 10 channel reed transmitter based on Phil's encoder. (Thank You Phil!) I purchased a 10ch Controlaire reed transmitter that was in very sad shape off of eBay. I harvested 5 switchcraft toggles, an on/off toggle and a edgewise panel meter. The case will be made from a BUD #CU-3008-A aluminum enclosure measuring 7 x 5 x 3 (178x127x76).
I plan on adding a buddy box switch as an addition to the Spektrum DM9 module for the RF.
Anyway...the journey begins! Stay tuned!

Dave Rigotti
User avatar
drigotti
Posts: 49
Joined: 29 Aug 2018, 12:44
Location: Ohio USA

Re: MY 10 channel reeduino transmitter

Post by drigotti »

Phil,

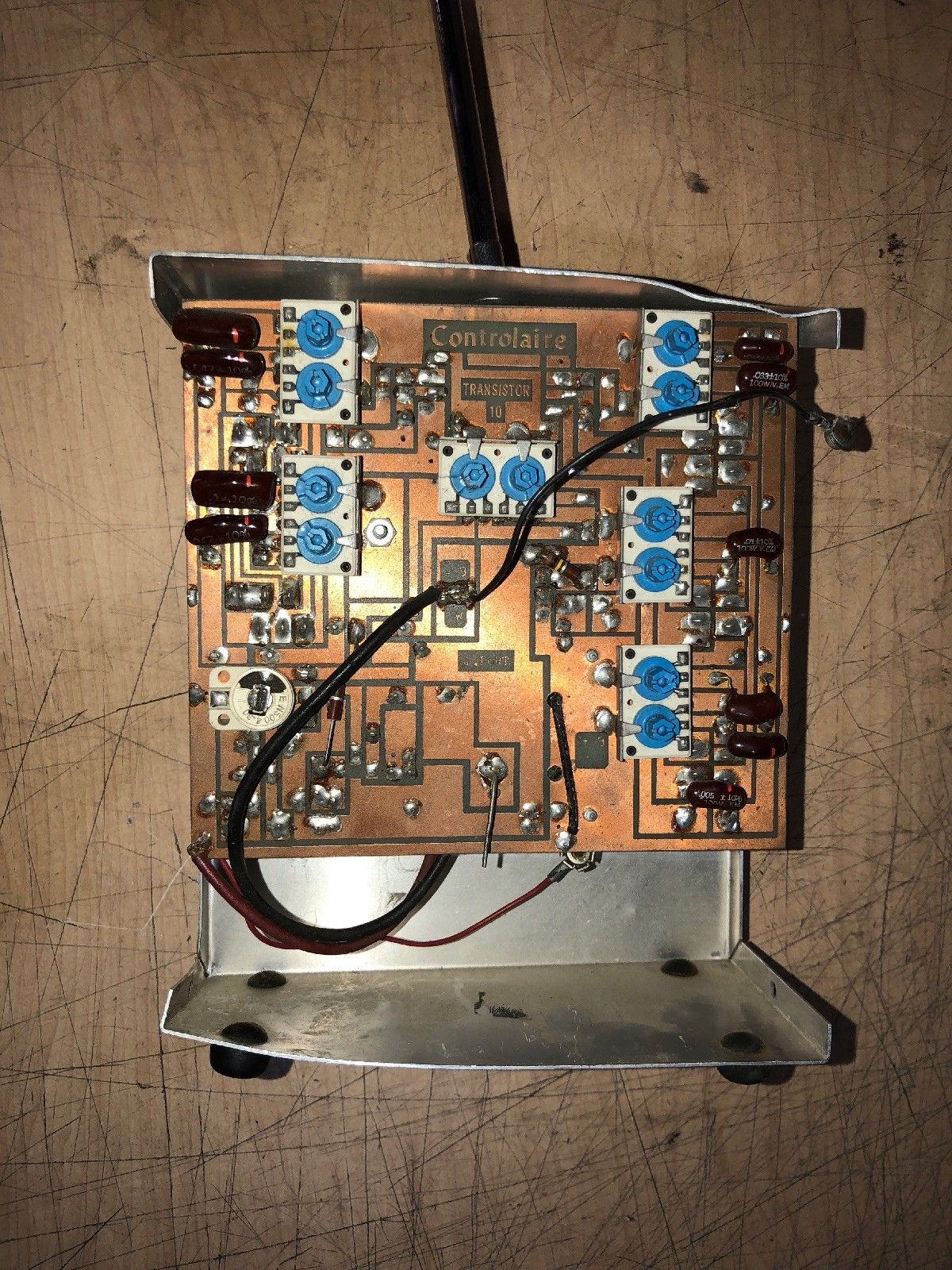

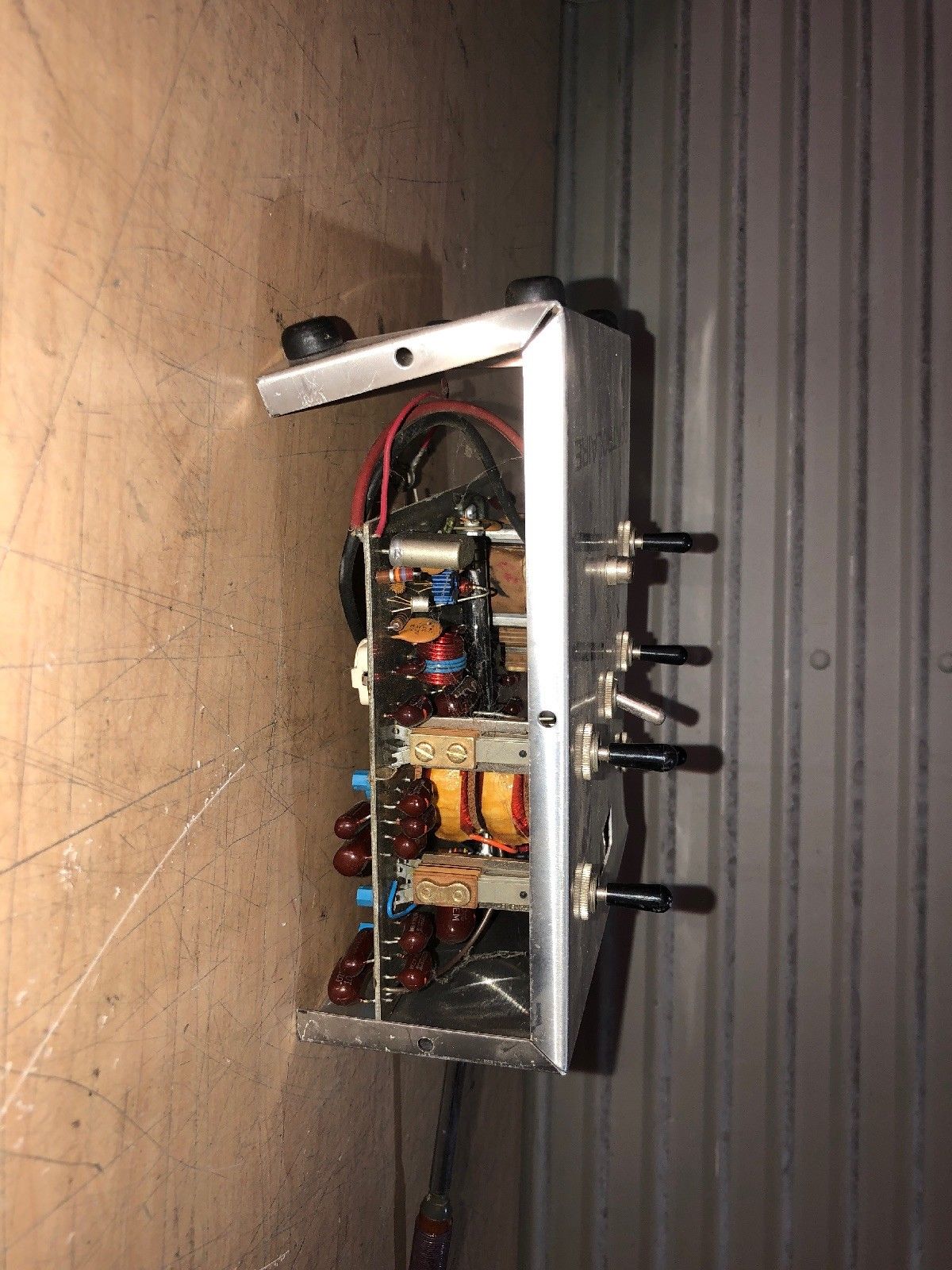

The tx was missing the back and the front looked like someone sat on it. The antenna was broke in two. No saving it possible. Getting the toggles was the main idea. They are in good working order.
Attachments
Dave Rigotti
User avatar
drigotti
Posts: 49
Joined: 29 Aug 2018, 12:44
Location: Ohio USA

Re: MY 10 channel reeduino transmitter

Post by drigotti »

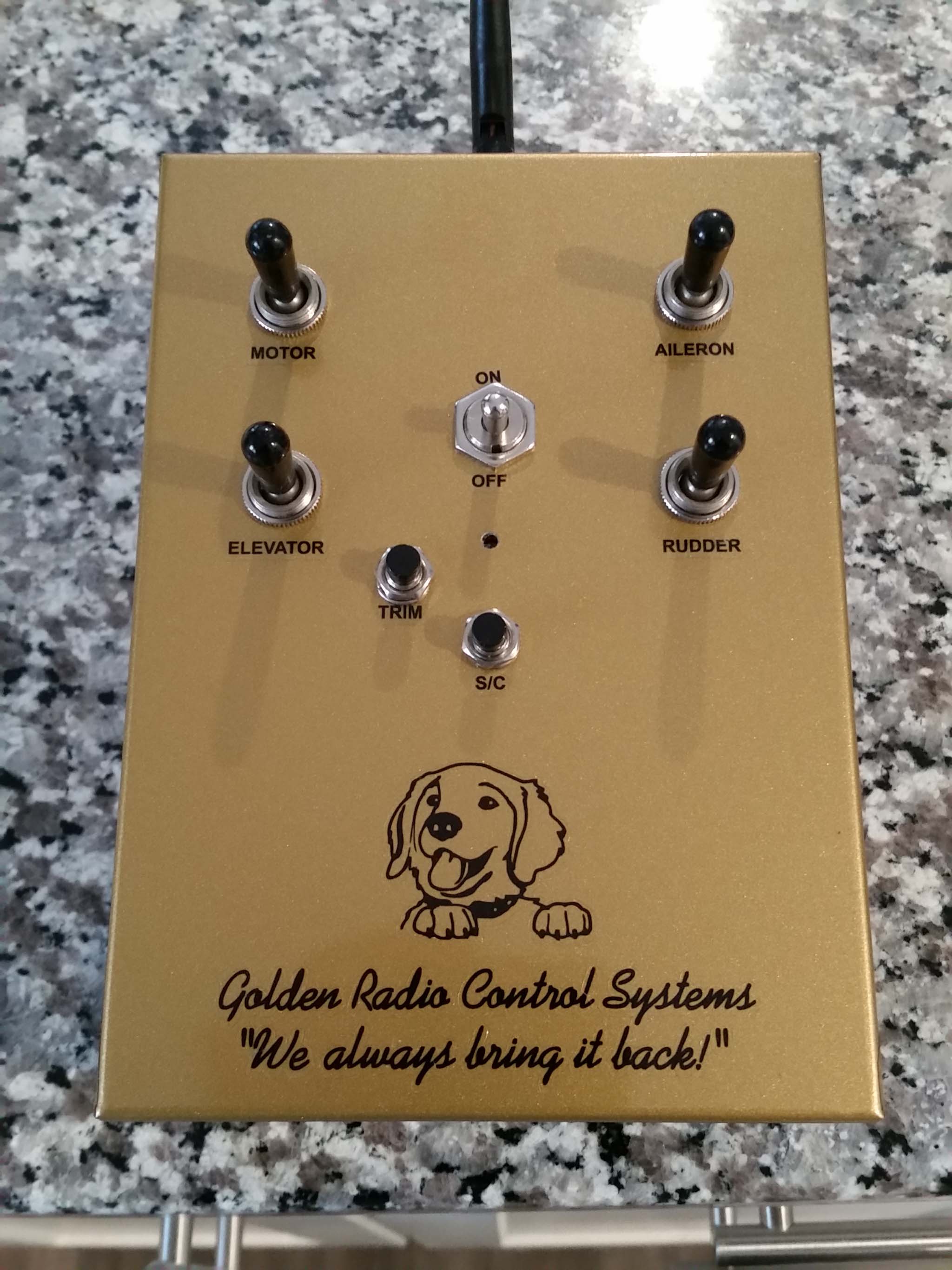

Here's the final result. The aluminum case is wrapped in vinyl. Callie Graphics supplied the decals from my art work. I'm scratch building a Carl Goldberg Sr. Falcon to fly with this setup.
Thanks to all for the help!
Dave Rigotti
MJF
Posts: 74
Joined: 12 Jun 2018, 15:22
Location: Ontario Canada

Re: MY 10 channel reeduino transmitter

Post by MJF »

You did a really nice job on the 10 channel Reeduino golden retriever transmitter!

The Sr. Falcon combined with your "new" radio should make a fun package.

For what its worth I have attached a copy of the decal sheet that came with my original Sr. Falcon kit.
I have tried to clean up the yellowing using windows "paint", there may be a few blotches left.

Mike
SR. FALCON DECAL 1.jpg
User avatar
tiptipflyer
Posts: 326
Joined: 16 Feb 2018, 22:49
Location: Germany

Re: MY 10 channel reeduino transmitter

Post by tiptipflyer »

Great transmitter, also a wonderfull design,
you will enjoy it in combination with your Sr.Falcon, which is also on my "to do list".
Reeds flying is great fun.

Frank
User avatar
RON
Site Admin
Posts: 588
Joined: 12 Jun 2017, 15:09
Location: Guisborough North Yorkshire

Re: MY 10 channel reeduino transmitter

Post by RON »

Very nice job there Drigotti.

Love the decals

Ron.

PS, don’t forget to make a box for it, just to finish it off :D
G0MBV Class A Radio Amateur, North Yorkshire
User avatar
Wayne_H
Posts: 545
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: MY 10 channel reeduino transmitter

Post by Wayne_H »

Very nice TX - great job Dave ;)
Cheers,

Wayne
Once a Retrobate, always a Retrobate............ ;)
User avatar
drigotti
Posts: 49
Joined: 29 Aug 2018, 12:44
Location: Ohio USA

Re: MY 10 channel reeduino transmitter

Post by drigotti »

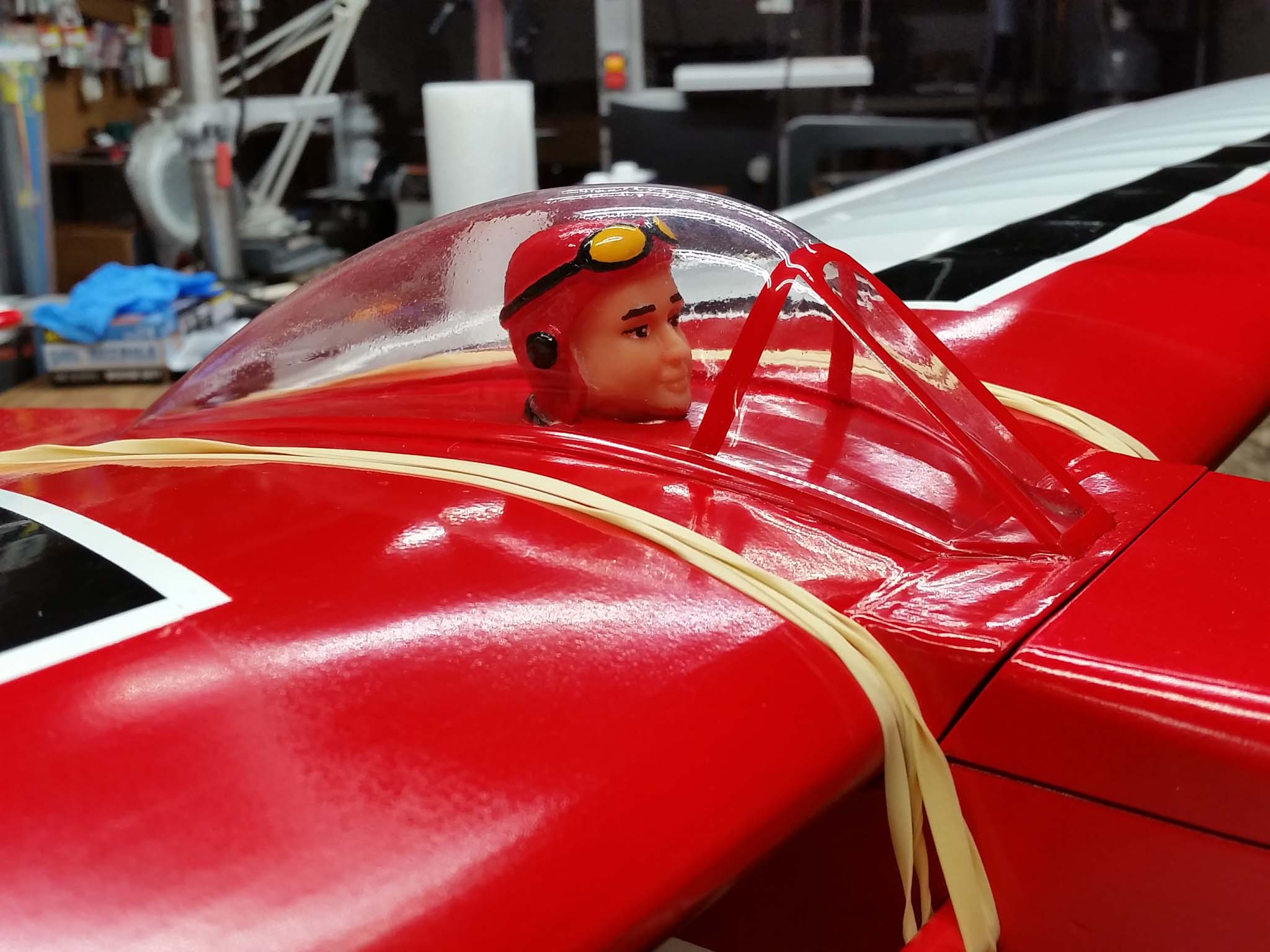

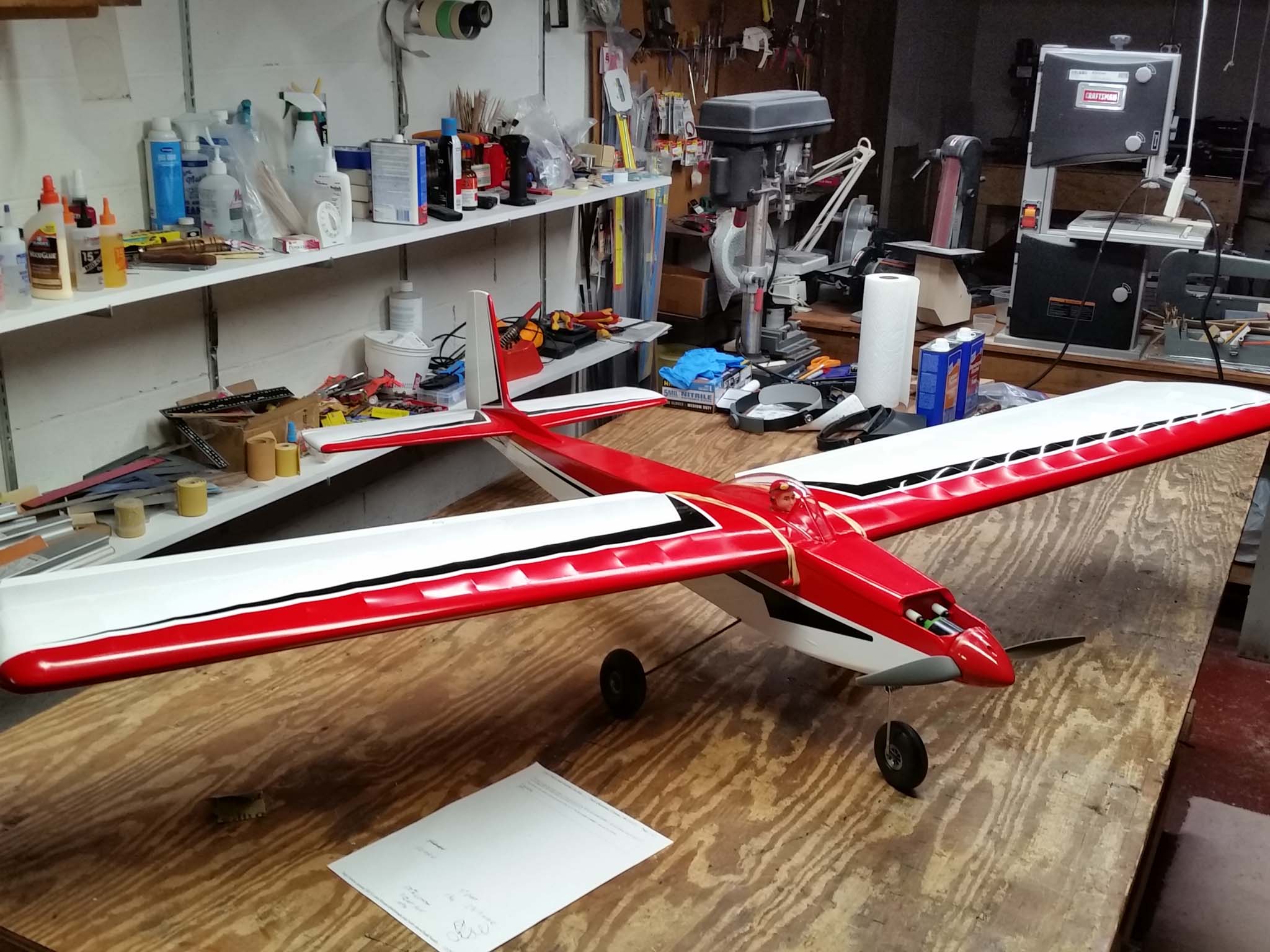

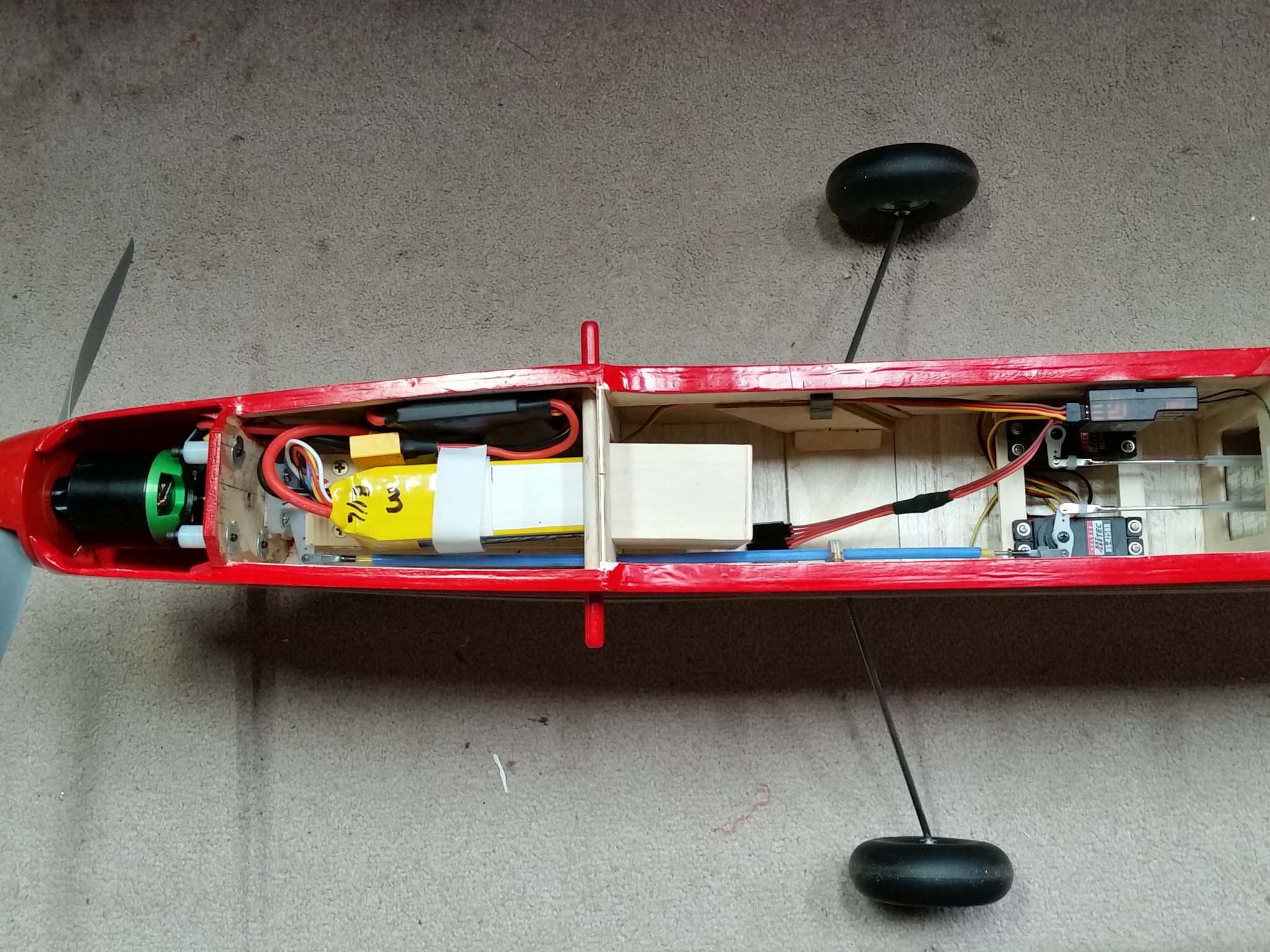

Here is a picture of my completed scratch built Sr. Falcon. Callie Graphics is making the "decal" for the fin as I type this. Monokote with Cobra 3525/10 swinging an APC 12/6E prop. 4 cell 5,000 mah lipo she weighs 6 1/4 pounds.... EXACTLY the box lid weight.
Just waiting a couple of months for the weather to improve.....

Dave Rigotti
User avatar
PaulJ
Posts: 466
Joined: 16 Feb 2018, 19:01
Location: Ipswich, UK

Re: MY 10 channel reeduino transmitter

Post by PaulJ »

'Lovely job! Both radio and model look terrific...... Well done! :P

Paul
User avatar
Wayne_H
Posts: 545
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: MY 10 channel reeduino transmitter

Post by Wayne_H »

Terrific job Dave on both items - looks like a fabulous combination, enjoy :)

I have repaired the Controlair case, folded a new back & gathered all the components ready for assembly. I'll make it the subject of a separate thread/post.
Cheers,

Wayne
