Junior 60 build

Post by Wavemeter »

Well Stuart Mackay has just given me the prod to post this build on Mode Zero. Having just completed and maidened my Super 60 it’s now time for the Junior 60. And all this in my sixties and 64 on the 16th November- gulp 64 …

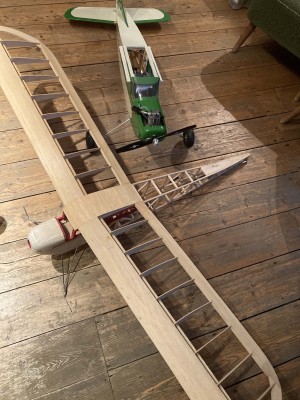

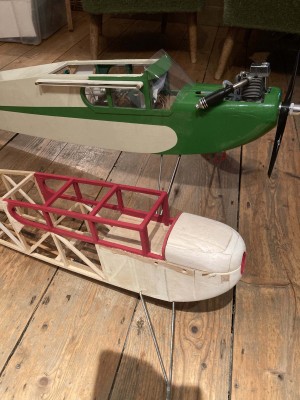

This one I bought part built just like the super

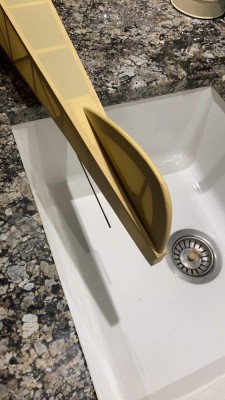

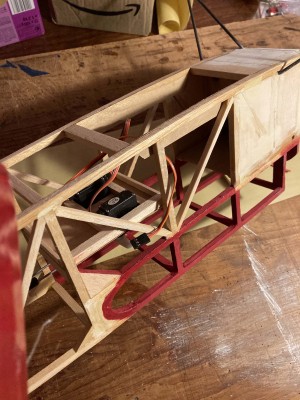

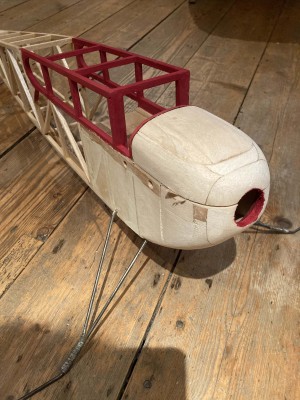

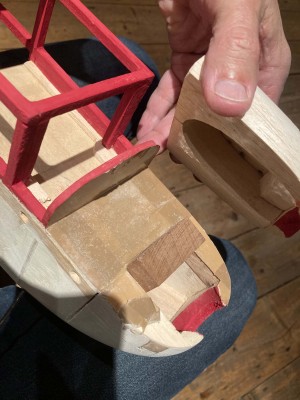

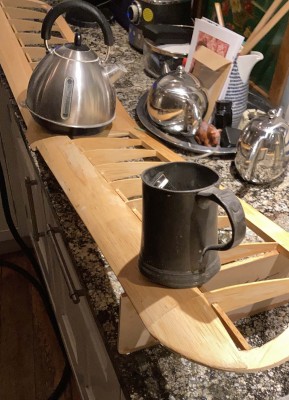

The wings are well built but are currently suffering from 9mm of wash IN on each wing :o . I cannot think it was built that way but it’s been built a while and never covered . So I think I will soak it in the bath and set it up on some formers to induce 6mm of wash OUT on each tip. This eve saw the shaping of the nose and the painting of the cabin frames
Attachments
Reconstituted boy
Martin
Posts: 595
Joined: 16 Feb 2018, 14:11
Location: Warwickshire

Re: Junior 60 build

Post by Martin »

Happy birthday!

I love Junior 60s, so am looking forward to your build. Because of the short nose, you usually have to add a ton of lead to get the c.g. right - but they carry it, no problem. Try to keep the tail end as light as you reasonably can, and install the gear well forward. This applies to both battery powered and i.c. power (unless you fit a much bigger engine than it needs).
User avatar
Wayne_H
Posts: 655
Joined: 17 Feb 2018, 05:26
Location: Wellington, NZ
Contact:

Re: Junior 60 build

Post by Wayne_H »

Wavemeter wrote: 14 Nov 2021, 21:12 .... And all this in my sixties and 64 on the 16th November- gulp 64 …
Happy Birthday Jonathan :D
Wavemeter wrote: 14 Nov 2021, 21:12 ....The wings are well built but are currently suffering from 9mm of wash IN on each wing :o ......
You could just leave the wing as is & putter around inverted, antipodean style :o :P
Cheers,

Wayne
Once a Retrobate, always a Retrobate............ ;)
User avatar
Wavemeter
Posts: 144
Joined: 16 Feb 2018, 21:22

Re: Junior 60 build

Post by Wavemeter »

Ha ha Wayne

I’m not sure I have that level of pilot skill :? : :lol:

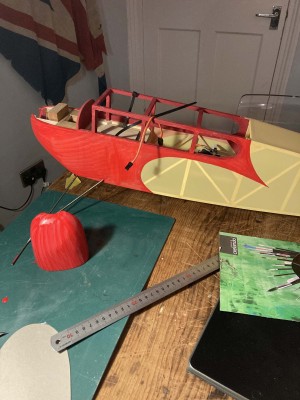

This eve sees the commencement of covering . I’m going for antique Solartex with red painted on accents in the traditional style .

I have put balsaloc on the edges of the fuz but jumping the gun really as I have not finished the tail feathers
They need a bit of remaking in part.

This time I’m going to cover the bottom first so the sides can lap downward so I don’t have seam edges pointing upward on the nose

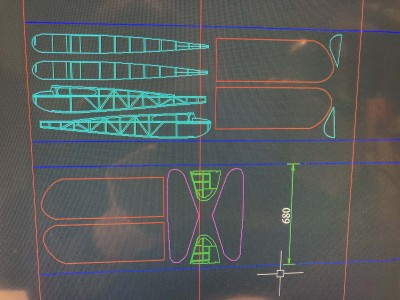

As Solartex is SO stupid money nowadays I have set out my cutting diagram in AutoCad so I don’t waste any

Thank you for the birthday wishes !
Attachments
Reconstituted boy
User avatar
Wavemeter
Posts: 144
Joined: 16 Feb 2018, 21:22

Re: Junior 60 build

Post by Wavemeter »

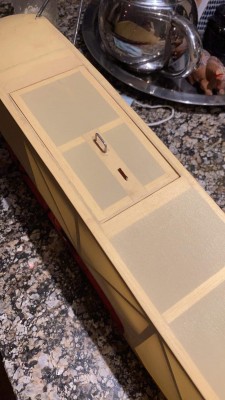

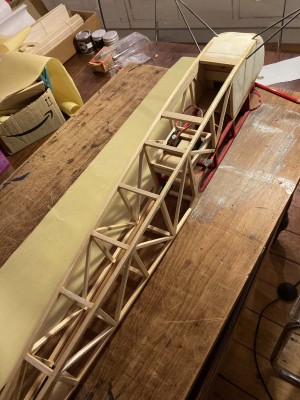

Fuz covering commences :ugeek:
Attachments
Reconstituted boy
User avatar
Wavemeter
Posts: 144
Joined: 16 Feb 2018, 21:22

Re: Junior 60 build

Post by Wavemeter »

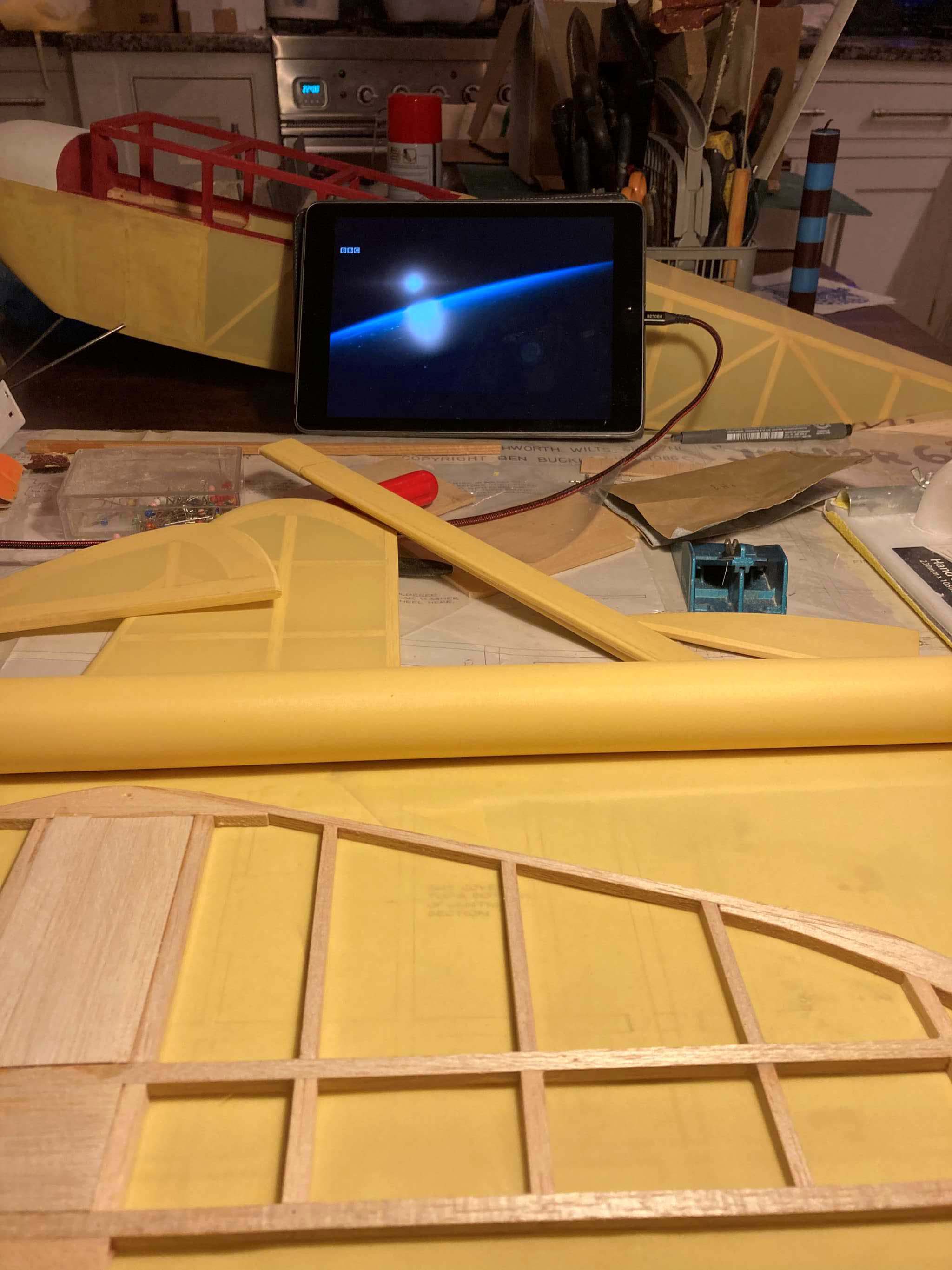

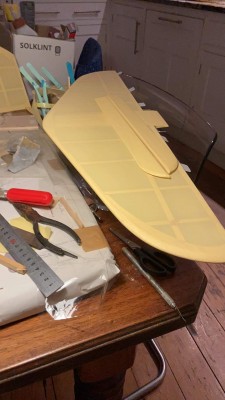

I always have a love hate relationship with covering . I can get very impatient and end up with burnt fingers and imperfections which drive me mad! But this evening I’ve slowed myself down by watching the excellent Brian Cox and the universe program from the BBC. I now have the horizontal stabiliser to cover before bed. The weekend should see the wings covered and final assembly
Attachments
Reconstituted boy
