CofG calculater

Post by AlexC »

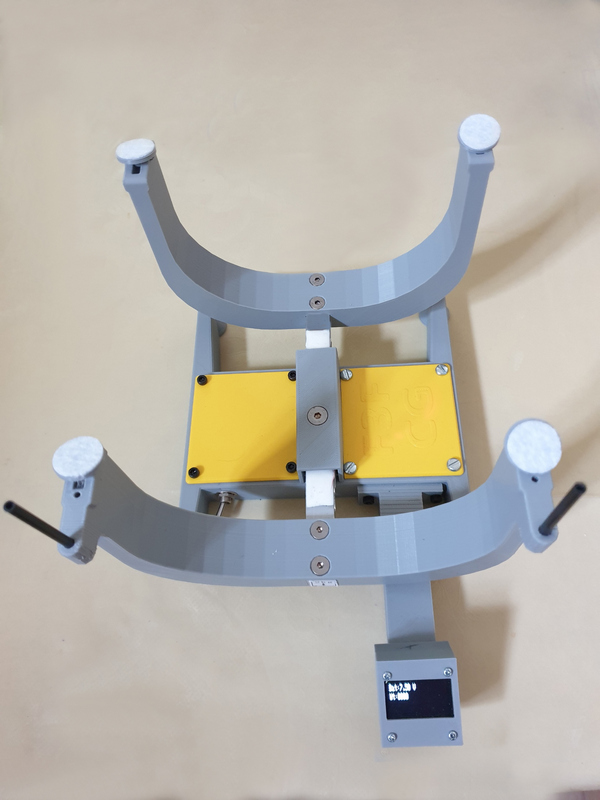

I had lots of fun printing and building this CofG machine.
It was originally designed to accurately display the CofG position for F3F gliders but with a change of wing mount suits a larger range of models.

When set up and calibrated it is very accurate.
Last edited by AlexC on 09 Jun 2021, 13:43, edited 1 time in total.
User avatar
Shaun
Posts: 1049
Joined: 15 Feb 2018, 21:49
Location: West Yorkshire

Re: CofG calculater

Post by Shaun »

Looks like a nifty widget Alex.

Shaun
AlexC
Posts: 53
Joined: 22 Feb 2018, 21:03

Re: CofG calculater

Post by AlexC »

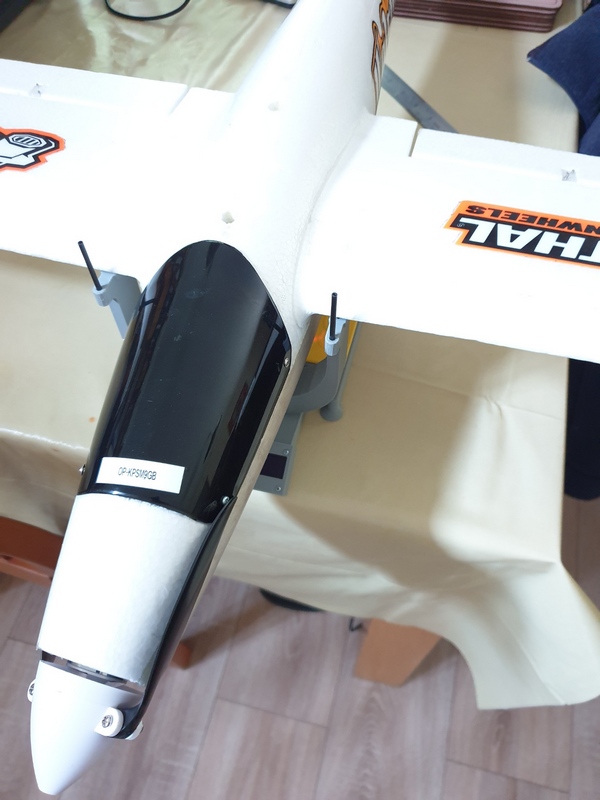

These photos show my Walrus glider on the machine. According to the manual, the correct CG is 71mm from the wing root fairing.

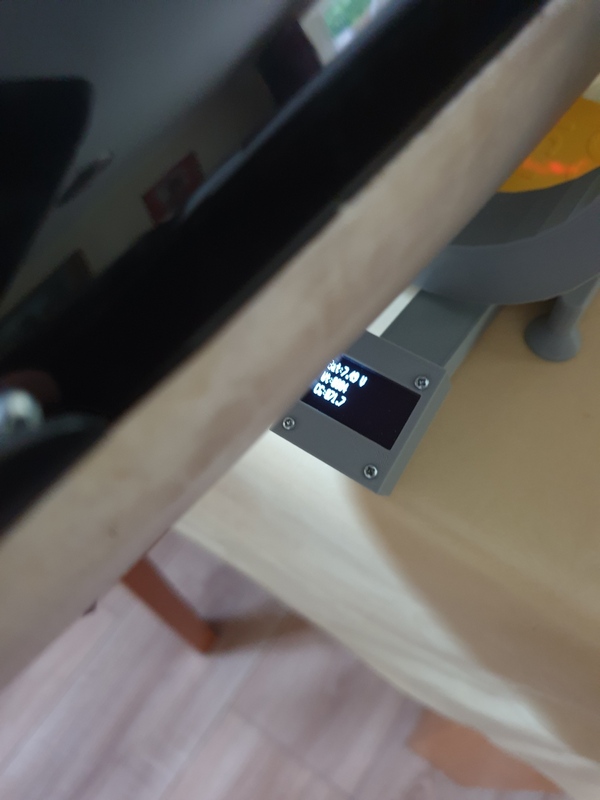

As you can see from the photo (hopefully) mine balanced on the point with 5 grams on the tail.

Attachments
User avatar
Wayne_H
Posts: 808
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: CofG calculater

Post by Wayne_H »

Shaun wrote: 09 Jun 2021, 13:43 Looks like a nifty widget Alex.

Shaun
Ditto from me too ;) A great looking project Alex, well done
Cheers,

Wayne
