Receiver Identifications and info

Post by Stewart » 28 May 2019, 09:38

First I have a Mc Gregor R60 superhet sc receiver, I need info as to what crystals fit, ie: does it have the early unusual i.f. frequency or regular later standard?

Secondly, I have an unidentified superregen receiver 27mhz , As the relay is samped OS Japan , im asumeing its an early OS unit.
also anyone know what voltages these use?

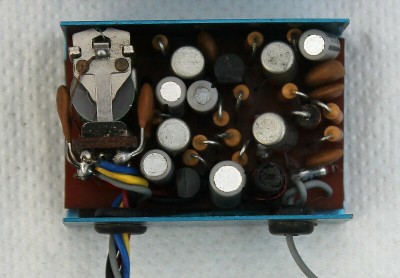

Attachments

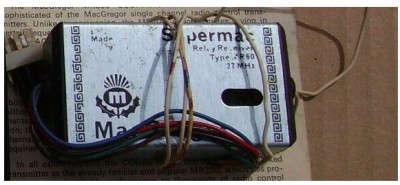

mcgreggor R60.jpg

User avatar
RON
Site Admin
Posts: 552
Joined: 12 Jun 2017, 15:09
Location: Guisborough North Yorkshire

Re: Receiver Identifications and info

Post by RON » 28 May 2019, 15:44

Not sure about the first one Stewart but the Blue aluminium one is almost certainly 470khz IF frequency. 470khz below tx crystal.
If you would like to contribute a small amount toward the upkeep of this valuable forum then please click the Donations link at the top of the page, just below the mode zero logo. All donations are kept anonymous. Thankyou

Stewart
Posts: 30
Joined: 17 Feb 2018, 04:57

Re: Receiver Identifications and info

Post by Stewart » 28 May 2019, 17:51

Thanks Ron, I suspected the McGregor had a 470 if , you wouldn't know were I might obtain a set of crystals?

User avatar
Wayne_H
Posts: 312
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: Receiver Identifications and info

Post by Wayne_H » 28 May 2019, 22:47

Stewart wrote:
28 May 2019, 09:38

Secondly, I have an unidentified superregen receiver 27mhz , As the relay is samped OS Japan , im asumeing its an early OS unit.
also anyone know what voltages these use?
Hi Stewart,

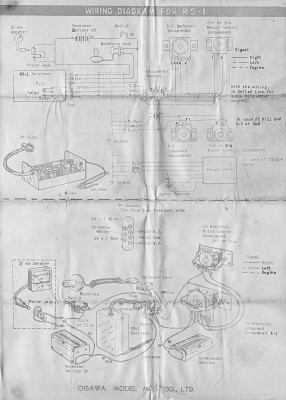

Here is wiring diagram for my RS-1 superhet Rx which most likely has the same relay - max 6v/1A
OS Minitron RS-1 Rx wiring.jpg
RS-1 Rx_3s.jpg

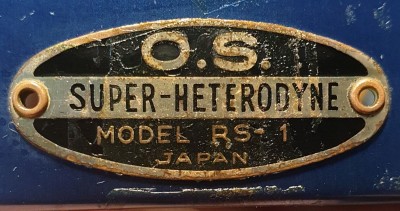

RS-1 Rx_badge-2s.jpg
Cheers,

Wayne
Once a Retrobate, always a Retrobate............ :roll:
