GEM Branded battery checker

Post by VC10 RON » 24 Jul 2019, 18:57

Im just on with a GEM branded battery checker to match up with my GEM SC outfit

It uses the .96” oled screen and displays battery voltage and is self powered.
Housed in a very small Hammond box only 50mm x 35mm x 15mm
It will also have the usual 6 pin header socket on the side for future programming/upgrades using usbasp and a JR type servo lead for the battery to plug into

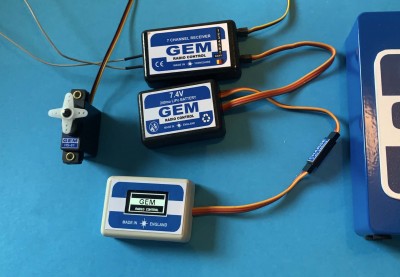

The case is the same size one used on the RX battery in photo. Should be neat when complete.
Its not designed as an all singing all dancing checker, but a quick tester to see what level of charge is in the battery
Click on image for a high res photo

If you would like to contribute a small amount toward the upkeep of this valuable forum then please click the Donate link at the top on the quick Links bar. Thank you.

User avatar
VC10 RON
Site Admin
Posts: 517
Joined: 12 Jun 2017, 15:09
Location: Guisborough North Yorkshire

Re: GEM Branded battery checker

Post by VC10 RON » 24 Jul 2019, 22:21

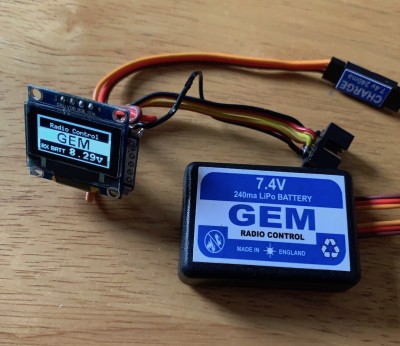

So I’ve been swapping stuff around on the display and come up with the final design. It better matches the original GEM tx

If you would like to contribute a small amount toward the upkeep of this valuable forum then please click the Donate link at the top on the quick Links bar. Thank you.

User avatar
Wayne_H
Posts: 280
Joined: 17 Feb 2018, 05:26
Location: Temora, NSW. Australia
Contact:

Re: GEM Branded battery checker

Post by Wayne_H » 24 Jul 2019, 23:35

Hi Ron, your attention to detail is inspirational ;) Your complete GEM "set" really is a jewel - well done.

Now I am inspired to (eventually) do similar with my O.S. Pixie.
Cheers,

Wayne
Once a Retrobate, always a Retrobate............ :roll:

User avatar
VC10 RON
Site Admin
Posts: 517
Joined: 12 Jun 2017, 15:09
Location: Guisborough North Yorkshire

Re: GEM Branded battery checker

Post by VC10 RON » 25 Jul 2019, 14:28

Thanks Wayne

So I’m virtually finished.
Here is the GEM battery checker.
At switch on, you get the branded splash screen, a few seconds later it returns a bar graph display of the battery.

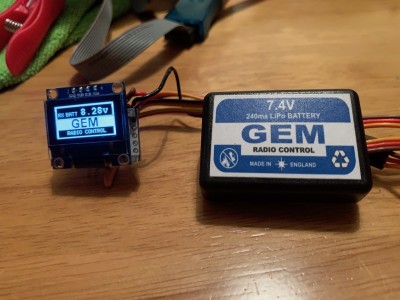

First photo, splash screen
Click images for high res version.

Ron
If you would like to contribute a small amount toward the upkeep of this valuable forum then please click the Donate link at the top on the quick Links bar. Thank you.

User avatar
Carl
Posts: 267
Joined: 16 Feb 2018, 13:26
Location: Way down in the South West
Contact:

Re: GEM Branded battery checker

Post by Carl » 25 Jul 2019, 17:52

Even a GEM servo. All very nice Ron.
Carl

------------------------------------
